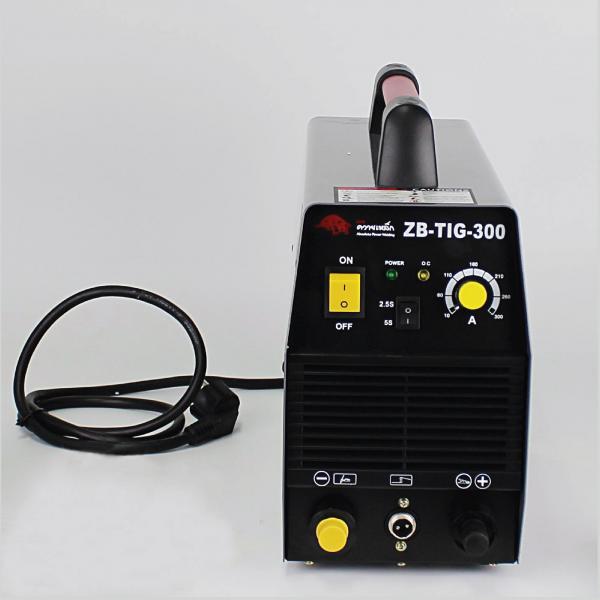

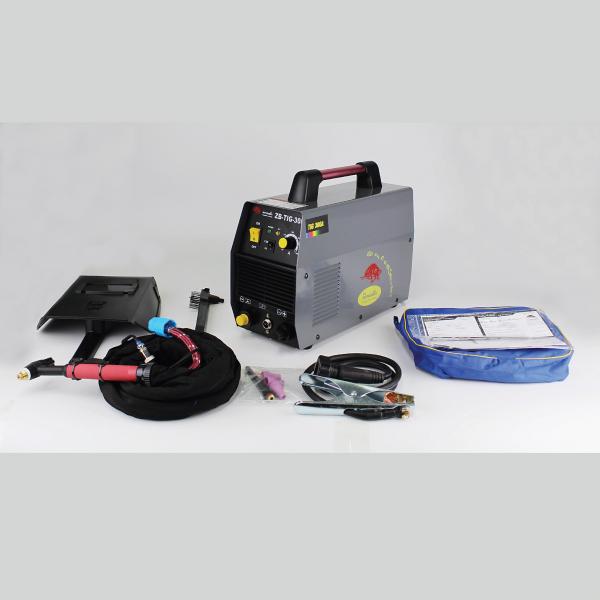

Model : ZB-TIG300

เครื่องเชื่อมอาร์กอน TIG Inverter

Power voltage : 1PhaseAC220V

Frequency : 50/60Hz

Rate input current : 16.5A

No-load volt : 56V

Outpur Current  : 20 - 300A

Rate working : 20V

Duty cycle at 25 ํC : 60%

No-load loss : 40W

Arc-starting : High frequency

Efficiency 80%

Power factor 0.73

Insulation class : F

Production class of case : IP21

พัดลมระบายความร้อนขนาดใหญ่

ขนาดลวดเชื่อม 2-4 มม.

สายเชื่อม ยาว 4 เมตร

สายกราวด์ ยาว 1.25 เมตร

น้ำหนัก 7.83 กิโลกรัม

OPERATION INSTRUCTION TIG WELDING DESCRIPTION

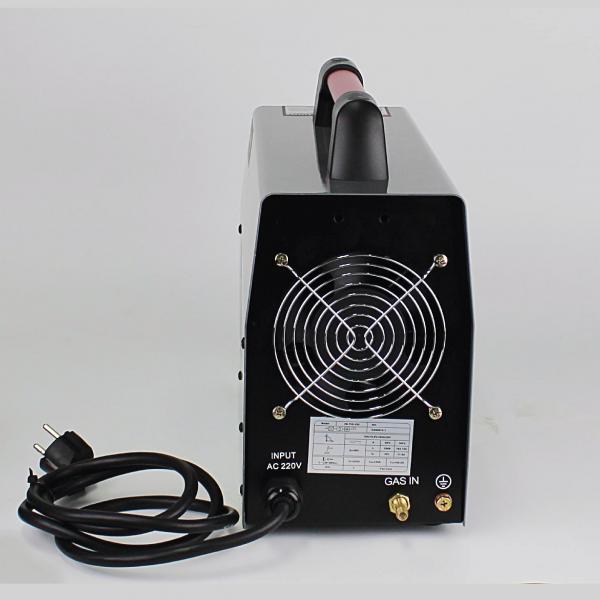

1. Tum on the power switch at the back panel, digital current meter is normal, fan begins to wheel
2. Open the valve of argon cylinder,adjust the volume of flow meter and make it is adequate to welding.
3. Press switch of torch,electromagnetic valve is started.Sound of HF arc striking can be heard,at the same time argon is flowing from torch burner NOTES: When welding is first operated,user must press switch of torch several seconds and beging to weld until all of air is be drained out. When welding is over, argon will still flow out in several seconds in order to protect welding spot before cooled down.So torch must be kept welding place some time before arc has been extinguished.
4. According to requirement to choose Pulse choosing switch Down position  is no pulse: Middle position is lF pulse:  Upper positionis low frequency(0.5 -2Hz), and adjust the  Pulse adjustment knob to suitable pulse frequency
5. According to the thickness and processing techniques of workpiece under welding, adjust cument down slope time turnbutton
6. Set suitable welding current and make sure welding current is adequate to thickness of work piece and process demand.
7. It is 2-4 mm from welding tungsten electrode to work piece,press control knob of torch,burn and strike arc, sound of HF arc-striking will be diminished, The welding machine can be operated now.
